Are you ready to take your audio setup to the next level? Connecting an audio mixer to multiple speakers can transform your sound experience from ordinary to extraordinary.
Imagine having complete control over your sound, whether you’re hosting a party, running a live event, or setting up a home studio. This guide is designed just for you, breaking down the process into simple steps that anyone can follow.
Say goodbye to sound struggles and hello to seamless audio perfection. Curious to learn how to make your sound system sing in harmony? Keep reading to unlock the secrets of flawless audio connections.
Credit: virtuosocentral.com
Choosing The Right Audio Mixer
Choosing an audio mixer is important for connecting to multiple speakers. The right mixer controls sound quality and output. Understanding mixer types, channel options, and power needs helps you pick the best one.
This guide breaks down key features to consider. You will learn about different mixer types, channel and output options, and power requirements.
Types Of Mixers
There are three main types of audio mixers: analog, digital, and powered. Each type serves different needs and budgets. Analog mixers are simple and reliable. Digital mixers offer more effects and presets. Powered mixers have built-in amplifiers for direct speaker connection.
- Analog Mixers:Easy to use, no complex menus.
- Digital Mixers:More control and sound options.
- Powered Mixers:Include amplifier for direct output.
Channel And Output Options
Channel count shows how many audio sources the mixer can handle. Output options tell how many speaker connections are available. Choose a mixer with enough channels for your devices and enough outputs for your speakers.
| Feature | Details |
|---|---|
| Channels | From 4 to 32 or more |
| Outputs | Main, monitor, auxiliary |
| Inputs | Mic, line-level, stereo |
| Mixing Options | Mono and stereo channels |
Power Requirements
Power needs depend on the mixer type and connected speakers. Analog mixers use external amps. Powered mixers have built-in amps that need more electricity. Make sure your power source matches the mixer’s voltage and current needs.
Power Tips:
- Check if mixer needs 110V or 220V power.
- Use surge protectors to avoid damage.
- Consider battery-powered mixers for portability.
- Match power to speaker wattage for best sound.
Selecting Suitable Speakers
Choosing the right speakers is important for good sound. It depends on your mixer and the space you want to fill.
Consider speaker type, power, and placement to get clear and balanced audio for your event.
Active Vs Passive Speakers
Active speakers have built-in amplifiers, so you only need to connect them to your mixer. Passive speakers need an external amplifier.
- Active speakers are easier to set up and move around.
- Passive speakers offer more flexibility with amplifiers.
- Active speakers need power outlets near them.
- Passive speakers require proper amplifier matching.
Speaker Impedance And Power Ratings
Speaker impedance and power ratings must match your amplifier or mixer output. Impedance is measured in ohms (Ω).
| Speaker Type | Impedance (Ohms) | Power Rating (Watts) |
| Active Speaker | Usually 8 Ω | Built-in Amplifier Rating |
| Passive Speaker | 4 Ω or 8 Ω | Depends on External Amplifier |
Check your mixer or amplifier specs before connecting speakers. Too low or high impedance can damage equipment.
Placement And Coverage
Speaker placement affects sound coverage and clarity. Place speakers to avoid dead zones and echoes.
- Position speakers at ear level for the audience.
- Avoid placing speakers too close to walls.
- Angle speakers slightly inward for better coverage.
- Use multiple speakers for large or irregular spaces.
Wiring And Connection Basics
Connecting an audio mixer to multiple speakers needs clear wiring. Good connections help sound travel well.
You must understand cables, signal flow, and ways to avoid signal loss. This guide covers these basics.
Cables And Connectors
Use the right cables and connectors for your audio setup. Different cables carry sound in different ways.
Common cables include XLR, TRS, and speaker wire. Each fits specific inputs and outputs on your mixer and speakers.
- XLR cables:Balanced, reduce noise, used for microphones and mixers
- TRS cables:Balanced or unbalanced, good for line-level signals
- Speaker wires:Carry high power to passive speakers
- RCA cables:Unbalanced, often for consumer audio devices
Signal Flow Paths
Signal flow means how audio moves from the mixer to the speakers. Understanding this helps connect devices correctly.
Audio flows from mixer outputs to speaker inputs. You can connect speakers in series or parallel depending on the setup.
- Series wiring:Connect speakers end to end, but can lower sound quality
- Parallel wiring:Connect all speakers to the mixer separately, keeps sound quality high
- Use amplifier outputs:Some mixers need an amplifier before speakers
- Check impedance:Match speaker load with mixer or amplifier capacity
Avoiding Signal Loss
Signal loss happens when sound weakens or distorts during connection. Avoid this to keep clear audio.
Use good cables and keep cable runs short. Long cables can lower signal quality and add noise.
- Use balanced cables to reduce noise
- Keep cable length under recommended limits
- Check all connections are secure and tight
- Avoid running cables near power lines to reduce interference
- Use quality connectors and replace damaged cables
Credit: virtuosocentral.com
Connecting Multiple Speakers
Connecting several speakers to an audio mixer can improve sound coverage. It helps fill larger rooms or outdoor spaces with clear audio.
You need to connect speakers carefully to avoid damage. This guide explains ways to connect multiple speakers safely and clearly.
Parallel Vs Series Wiring
Speakers can be wired in parallel or series. Each wiring type affects sound quality and the load on your mixer.
Parallel wiring keeps the voltage the same across each speaker. It lowers the total impedance, which can strain the mixer if too many speakers connect.
- Parallel wiring:All speaker positives connect together, and all negatives connect together.
- Series wiring:Speakers connect end-to-end, positive to negative.
- Series wiring raises total impedance, reducing risk to the mixer.
- Too low impedance in parallel wiring can damage the amplifier.
Using Speaker Splitters
Speaker splitters let you connect multiple speakers to one output safely. They divide the audio signal evenly between speakers.
Splitters reduce the load on your mixer and keep impedance at safe levels. They are easy to use and prevent wiring mistakes.
- Splitters have multiple outputs from a single input.
- They keep impedance balanced for better sound.
- Ideal for small to medium speaker setups.

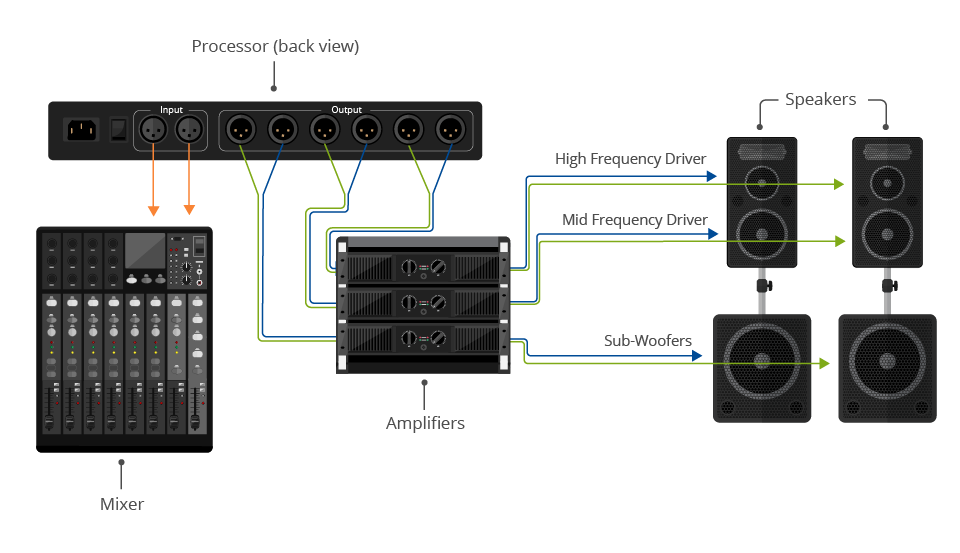

Employing Amplifiers And Distribution Systems
Amplifiers boost audio signals for many speakers. Distribution systems send audio to several speakers without losing quality.
Using these tools helps keep sound clear and loud. They protect your mixer and speakers from damage due to low impedance.
- Amplifiers increase power for large speaker setups.
- Distribution systems split signals with minimal loss.
- They allow control over volume and zones.
- Useful in big venues or outdoor events.
Preventing Audio Issues
Connecting audio mixers to multiple speakers can cause sound problems. These problems can affect the quality of your audio output.
It is important to prevent these issues to get clear and balanced sound in your setup.
Managing Impedance Mismatch
Impedance mismatch happens when the speaker and mixer have different electrical resistance. This mismatch can cause poor sound or damage to equipment.
Always check the impedance ratings of your mixer and speakers. Match the speaker’s impedance to the mixer’s output rating.
- Use speakers with impedance that matches the mixer output
- Do not connect too many speakers to one output
- Use impedance matching devices if needed
Reducing Noise And Interference
Noise and interference cause unwanted sounds like hums or buzzes in your audio system. These sounds reduce clarity and distract listeners.
Keep cables away from power lines and use balanced cables. Ground your equipment properly to lower noise.
- Use shielded and balanced cables
- Avoid running cables near electrical wires
- Connect all equipment to the same power source
- Check and fix any loose cable connections
Balancing Volume Levels
Uneven volume levels between speakers cause bad sound experience. Some speakers may sound too loud or too soft.
Adjust the volume on each speaker and mixer channel to get balanced sound. Use a sound meter if possible.
- Set equal volume levels for all speakers
- Test the sound in different areas of the room
- Fine-tune mixer channel levels for clarity
- Reduce volume if you hear distortion or feedback
Credit: www.youtube.com
Advanced Setup Tips
Connecting audio mixers to multiple speakers needs careful planning. This guide shares tips for advanced setups. These tips help improve sound quality and system reliability.
Learn how to use DI boxes, add wireless speakers, and adjust your setup for different venues. These ideas suit live events, studios, and public speaking.
Using Di Boxes And Signal Processors
DI boxes convert unbalanced signals to balanced ones. This reduces noise over long cable runs. Signal processors shape sound to fit the space and gear.
- Place DI boxes near instruments or mixer outputs
- Use signal processors to adjust EQ and dynamics
- Connect processors between mixer and speakers for best control
- Check gain levels to avoid distortion
- Use quality cables to maintain signal integrity
Wireless Speaker Integration
Wireless speakers add flexibility but need clear signal paths. Interference can cause dropouts or noise. Choose frequencies carefully and test before events.
| Tip | Description |
| Frequency Selection | Use less crowded bands to avoid interference |
| Signal Range | Keep transmitters and receivers within line of sight |
| Battery Check | Ensure speakers are fully charged before use |
| Secure Pairing | Lock channels to prevent cross-talk |
| Backup Plan | Have wired connections ready if wireless fails |
Optimizing For Different Venues
Every venue has unique sound challenges. Adjust speaker placement and mixer settings to suit room size and shape. Test sound from different spots.
- Use delay speakers in large spaces to cover distant areas
- Lower bass levels in small rooms to reduce booming
- Raise midrange for clear vocals in open areas
- Adjust volume for audience size and background noise
- Check for feedback and fix with EQ or mic placement
Frequently Asked Questions
How Do I Connect An Audio Mixer To Multiple Speakers?
Use an audio splitter or amplifier with multiple outputs. Connect the mixer’s main output to the splitter, then run cables to each speaker. Ensure impedance compatibility to prevent signal loss or damage.
Can I Connect Different Types Of Speakers To One Mixer?
Yes, but check the power ratings and impedance of each speaker. Use appropriate adapters or amplifiers if needed to ensure balanced sound and avoid equipment damage.
What Cables Are Best For Linking Mixers To Multiple Speakers?
Use balanced XLR or TRS cables for long runs to reduce noise. For short distances, TS cables may work, but balanced cables provide clearer sound quality.
Is It Necessary To Use An Amplifier With Multiple Speakers?
Yes, if your speakers are passive, an amplifier is needed. Active speakers have built-in amplifiers and can connect directly to the mixer’s output.
Conclusion
Connecting audio mixers to multiple speakers can improve your sound experience. Use the right cables and check speaker compatibility. Keep volume levels balanced to avoid distortion. Test your setup before any event or show. Simple steps can make a big difference.
Enjoy clear and powerful sound every time you connect. Practice makes perfect. Try different setups to find what works best for you.
